Air conditioning for BMW 2500-3.3Li 3.3L (1974)

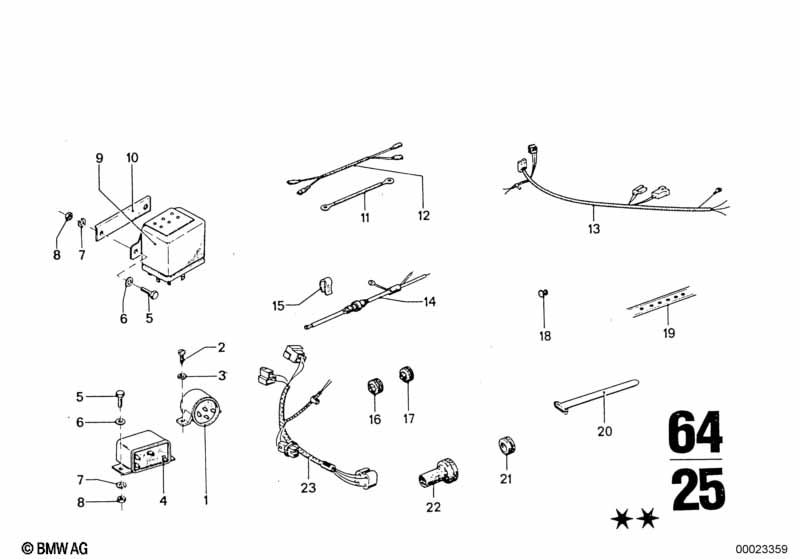

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Sheet metal screw | ST4,8X9,5-C-H-Z | 2 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 03 | Tooth washer | A5,1 | 2 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M5X10 | 1 | 08/1968 | 02/1977 | 07119913218 | $0.12 | Shop at ECS Tuning | ||
| 06 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 06 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B5 | 1 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 16 | Rubber grommet | 1 | 64214774144 | $1.46 | Shop at ECS Tuning | |||||
| 17 | Grommet | 1 | 64214774143 | ENDED | Shop at ECS Tuning | |||||
| 20 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 21 | Rubber grommet | 18MM | 1 | 08/1968 | 02/1977 | 64211376130 | $1.51 | Shop at ECS Tuning | ||
| 22 | Grommet | 1 | 08/1968 | 02/1977 | 64511356039 | $1.46 | ENDED | Shop at ECS Tuning | ||
| 23 | Wiring for air conditioner | 1 | 08/1968 | 02/1977 | 61121357370 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
