Heater-switch panel/wiring set for BMW 2500-3.3Li 3.0Si (1971)

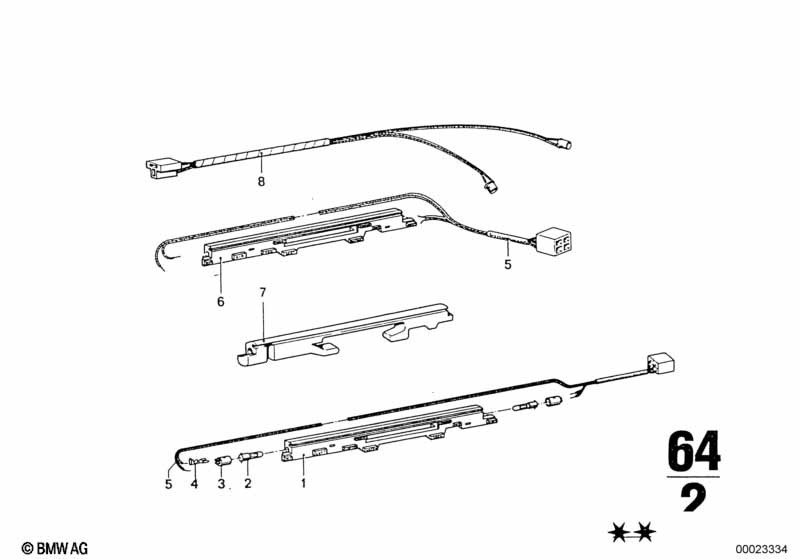

This Heater-switch panel/wiring set technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Printed circuit board | 1 | 05/1971 | 02/1977 | 64111356480 | ENDED | Shop at ECS Tuning | |||

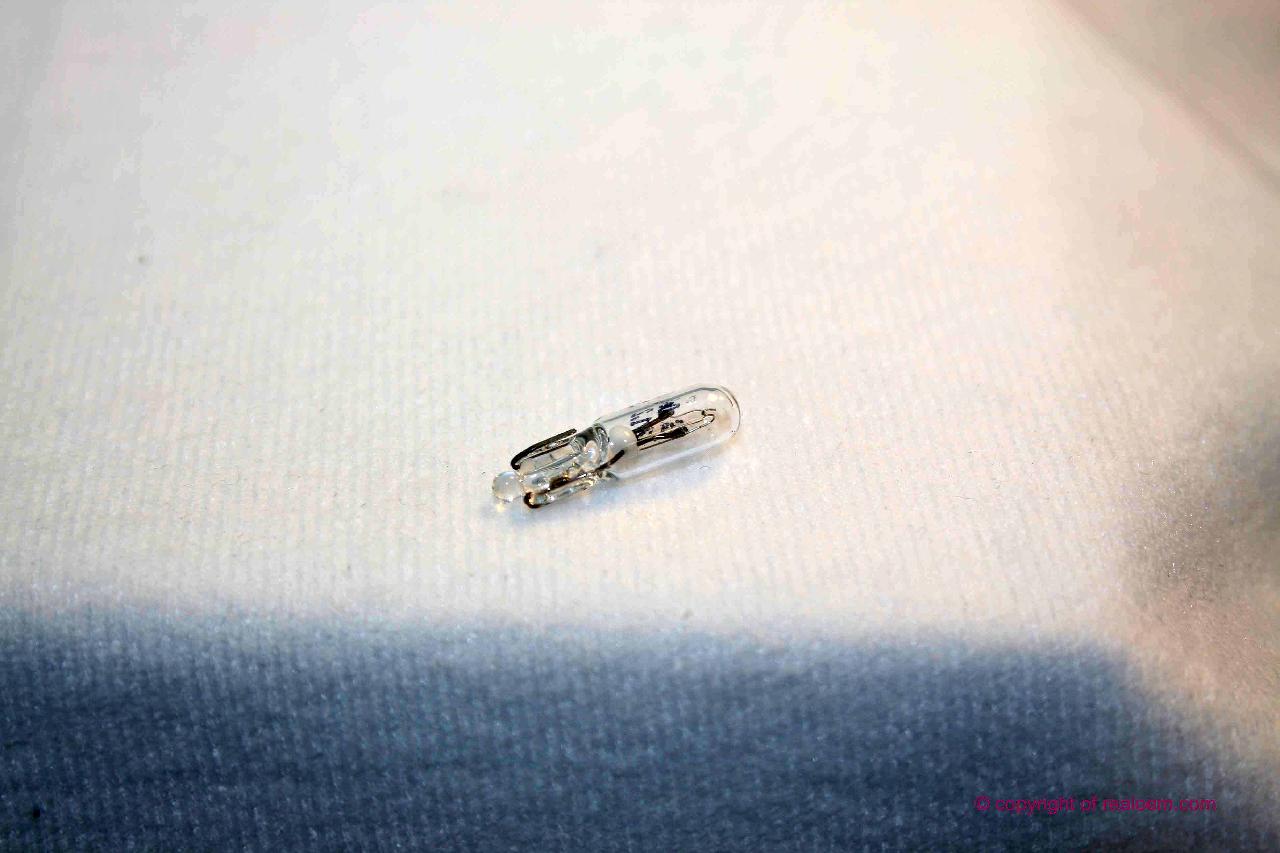

| 02 | Bulb | 12V 1,2W | 2 | 05/1971 | 02/1977 | 63217167000 | $3.00 | Shop at ECS Tuning | ||
| 03 | Bulb socket | 2 | 05/1971 | 02/1977 | 64111362115 | $1.96 | Shop at ECS Tuning | |||
| 04 | Cable socket female | B=8/L=20 | 2 | 05/1971 | 02/1977 | 61138608021 | $0.55 | ENDED | Shop at ECS Tuning | |
| 05 | Wiring heater control | 1 | 05/1971 | 02/1977 | 64111356482 | ENDED | Shop at ECS Tuning | |||
| 07 | Printed circuit board | 1 | 05/1971 | 02/1977 | 64111360399 | ENDED | Shop at ECS Tuning | |||
| 08 | Wiring heater control | 1 | 05/1971 | 02/1977 | 64111360401 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
