Heater for BMW 2500-3.3Li 3.3L (1974)

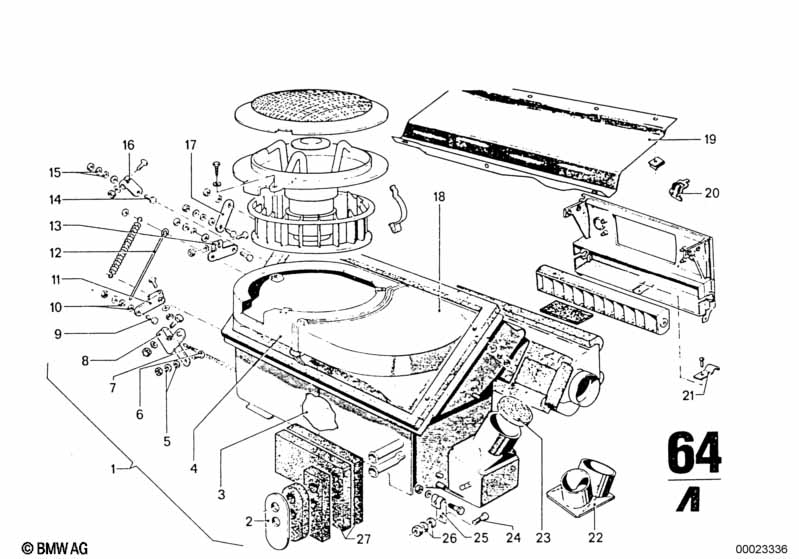

This Heater technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater | 1 | 09/1973 | 02/1977 | 64111353880 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering plate | 1 | 07/1969 | 02/1977 | 64111352970 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 03 | Heater radiator | 1 | 08/1968 | 02/1977 | 64111351359 | $331.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Housing | 1 | 08/1968 | 02/1977 | 64111354148 | ENDED | Shop at ECS Tuning | |||
| 06 | Pin | 5 | 64114674219 | $3.35 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bowden cable | 1 | 64111351378 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lever | 1 | 64111351372 | ENDED | Shop at ECS Tuning | |||||
| 09 | Pin | 1 | 64111351376 | ENDED | Shop at ECS Tuning | |||||
| 10 | Washer | 2 | 64111351377 | ENDED | Shop at ECS Tuning | |||||
| 11 | Lever | 1 | 64111351371 | ENDED | Shop at ECS Tuning | |||||
| 12 | Connection rod | 1 | 64111351374 | ENDED | Shop at ECS Tuning | |||||
| 13 | Lever | 1 | 64111351370 | ENDED | Shop at ECS Tuning | |||||
| 14 | Pin | 5 | 64114674219 | $3.35 | ENDED | Shop at ECS Tuning | ||||
| 16 | Lever | 1 | 64111351369 | ENDED | Shop at ECS Tuning | |||||
| 17 | Lever | 1 | 64111351368 | ENDED | Shop at ECS Tuning | |||||
| 18 | Flap | 1 | 64111354138 | ENDED | Shop at ECS Tuning | |||||
| 19 | Covering plate | 1 | 64111352032 | ENDED | Shop at ECS Tuning | |||||
| 20 | Clamp | 9 | 64111351375 | $1.74 | ENDED | Shop at ECS Tuning | ||||
| 21 | Spring | 1 | 64111353658 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 22 | Connector | 2 | 08/1968 | 02/1977 | 64111354099 | ENDED | Shop at ECS Tuning | |||
| 23 | Cap | 2 | 08/1968 | 02/1977 | 64111354120 | ENDED | Shop at ECS Tuning | |||
| 24 | Pin | 5 | 64114674219 | $3.35 | ENDED | Shop at ECS Tuning | ||||
| 25 | Lever | 1 | 64111351373 | ENDED | Shop at ECS Tuning | |||||
| 27 | Gasket | 1 | 08/1968 | 02/1977 | 64111356856 | $48.92 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Heater?
- This technical diagram illustrates the Heater within the Heater and Air Conditioning group for the 2500-3.3Li 3.3L produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Heater (Part #64111353880).
- Which models use the hardware listed in this Heater?
- The hardware and components featured in the Heater are specific to the 2500-3.3Li 3.3L produced during 1974. These technical specifications ensure that parts like the Heater (64111353880) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater assembly?
- Each item in the Heater corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Heater by locating its position on the schematic, which then links to the official BMW part number 64111353880 for the Heater and Air Conditioning section.
