Heater control/bowden cable for BMW 2500-3.3Li 2500 (1971)

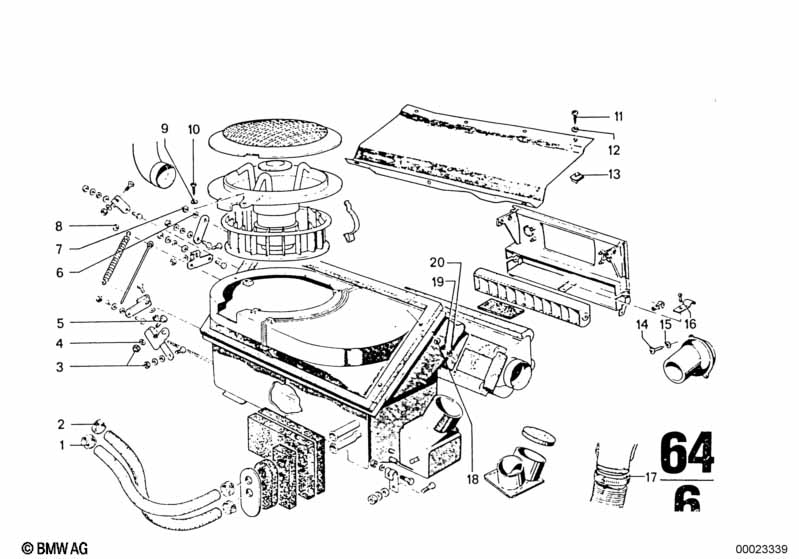

This Heater control/bowden cable technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose clamp | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 02 | Trim ring | 3 | 61318648120 | ENDED | Shop at ECS Tuning | |||||
| 04 | Set flat washer 20 | A4,3 | 12 | 07509064020 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M4X20 | 5 | 07119913091 | $0.61 | ENDED | Shop at ECS Tuning | |||
| 06 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Circlip | 4,0 | 1 | 07119932822 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Set spring washer 20 | B5 | 3 | 07509064024 | ENDED | Shop at ECS Tuning | ||||
| 10 | Set hex head screw 25 | ST4,8X19-Z2 | 3 | 07509063115 | ENDED | Shop at ECS Tuning | ||||
| 13 | Body nut | ST4,8-13-ZNS3 | 7 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Hose clamp | 2 | 64221355179 | ENDED | Shop at ECS Tuning | |||||
| 18 | Washer | 6,4 | 4 | 07119936424 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 19 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 20 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning |
