Antenna for BMW 2500-3.3Li 2500 (1971)

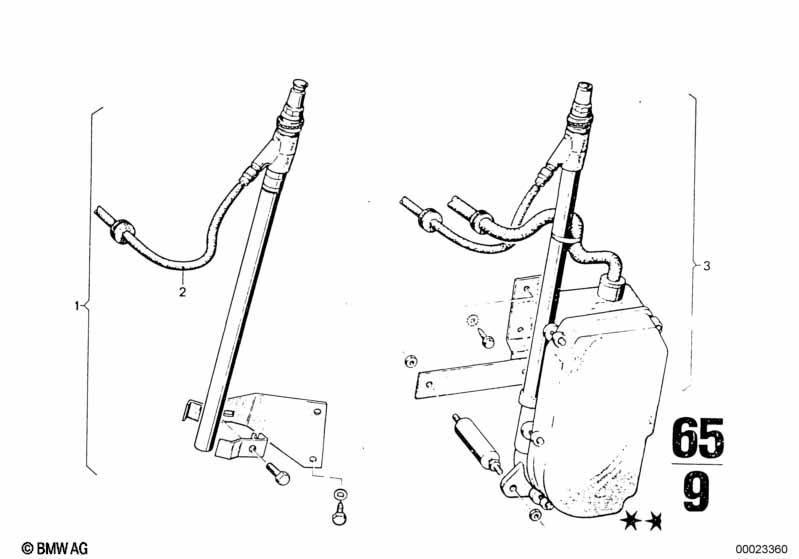

This Antenna technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set disappearing antenna | 1 | 08/1968 | 02/1977 | 65211351081 | ENDED | Shop at ECS Tuning | |||
| 02 | Wiring front | 1800MM | 1 | 65121363959 | $23.46 | Shop at ECS Tuning | ||||
| 03 | Installing set automatic antenna | 1 | 65221350836 | ENDED | Shop at ECS Tuning | |||||
| 03 | Installing set automatic antenna | 1 | 65229056480 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Antenna?
- This technical diagram illustrates the Antenna within the Audio, Navigation, Electronic Systems group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Installing set disappearing antenna (Part #65211351081).
- Which models use the hardware listed in this Antenna?
- The hardware and components featured in the Antenna are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Installing set disappearing antenna (65211351081) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Antenna assembly?
- Each item in the Antenna corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Installing set disappearing antenna by locating its position on the schematic, which then links to the official BMW part number 65211351081 for the Audio, Navigation, Electronic Systems section.
