Car tool/Lifting jack for BMW 2500-3.3Li 2500 (1971)

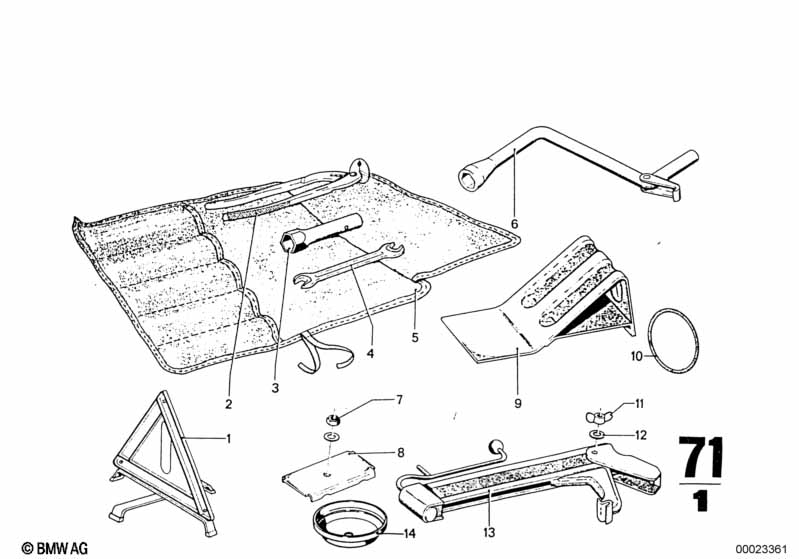

This Car tool/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Warning triangle | 1 | 08/1968 | 02/1977 | 71601118121 | ENDED | Shop at ECS Tuning | |||
| 02 | Water pump pliers | 1 | 08/1968 | 02/1977 | 71111179522 | $23.94 | Shop at ECS Tuning | |||
| 04 | Double open-end wrench | 8X10 | 1 | 08/1968 | 02/1977 | 71111112893 | $5.40 | Shop at ECS Tuning | ||
| 04 | Open end spanner | 17-19 | 1 | 08/1968 | 02/1977 | 71119690008 | $3.74 | ENDED | Shop at ECS Tuning | |
| 04 | Open end spanner | 13-14 | 1 | 08/1968 | 02/1977 | 71119690009 | $5.78 | Shop at ECS Tuning | ||
| 06 | Crank | 1 | 71121103150 | $29.85 | ENDED | Shop at ECS Tuning | ||||
| 08 | Chock, aluminium | 1 | 08/1968 | 02/1977 | 71126756392 | $11.50 | Shop at ECS Tuning | |||
| 08 | Bracket for spare wheel | 1 | 08/1968 | 02/1977 | 71159690012 | ENDED | Shop at ECS Tuning | |||
| 09 | Chock, aluminium | 1 | 71126756392 | $11.50 | Shop at ECS Tuning | |||||
| 11 | Wing nut | M8 | 2 | 07119924040 | $1.42 | Shop at ECS Tuning | ||||
| 13 | Lifting jack | 1 | 71121150569 | $84.72 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
