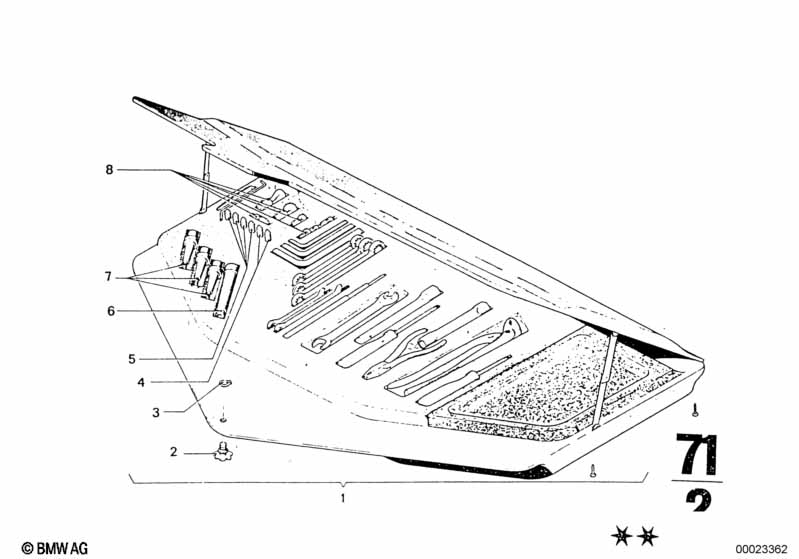

Car tool/Lifting jack for BMW 2500-3.3Li 3.3L (1974)
This Car tool/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | OHNE INHALT | 1 | 71111102916 | Shop at ECS Tuning | |||||
| 03 | Lock Ring | 1 | 07119934071 | $0.44 | Shop at ECS Tuning | |||||
| 04 | Fuse | 8A | 2 | 61138760138 | $1.83 | Shop at ECS Tuning | ||||
| 05 | Fuse | 16A | 2 | 61138760140 | $1.83 | Shop at ECS Tuning | ||||
| 05 | Fuse | 5A | 2 | 61138760141 | $0.14 | Shop at ECS Tuning | ||||
| 06 | Spark plug socket | 1000-OHM | 1 | 12121356004 | $7.84 | ENDED | Shop at ECS Tuning | |||
| 07 | Spark plug | BOSCH W175T2 | 1 | 12121351716 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bulb | 12V 5W | 1 | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 08 | Bulb | P21W/12V/21W | 1 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 08 | Longlife bulb | P21W/12V/21W | 1 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Bulb | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||

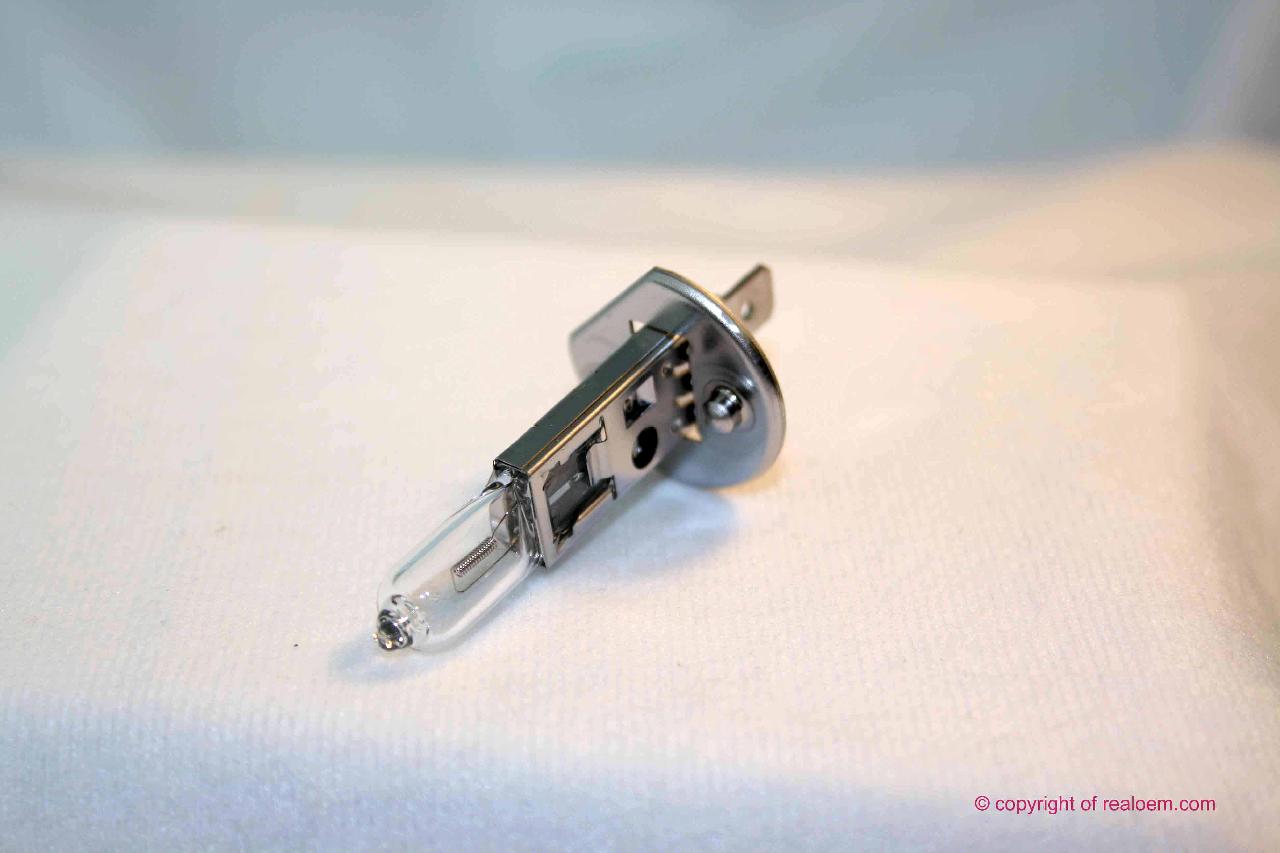

| 08 | Bulb | 12V 55W H1 | 1 | 04/1969 | 07/1975 | 63217160777 | $11.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Car tool/Lifting jack?
- This technical diagram illustrates the Car tool/Lifting jack within the Equipment Parts group for the 2500-3.3Li 3.3L produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Tool box (Part #71111102916).
- Which models use the hardware listed in this Car tool/Lifting jack?
- The hardware and components featured in the Car tool/Lifting jack are specific to the 2500-3.3Li 3.3L produced during 1974. These technical specifications ensure that parts like the Tool box (71111102916) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Car tool/Lifting jack assembly?
- Each item in the Car tool/Lifting jack corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Tool box by locating its position on the schematic, which then links to the official BMW part number 71111102916 for the Equipment Parts section.
