Car tool/Lifting jack for BMW 2500-3.3Li 3.3L (1974)

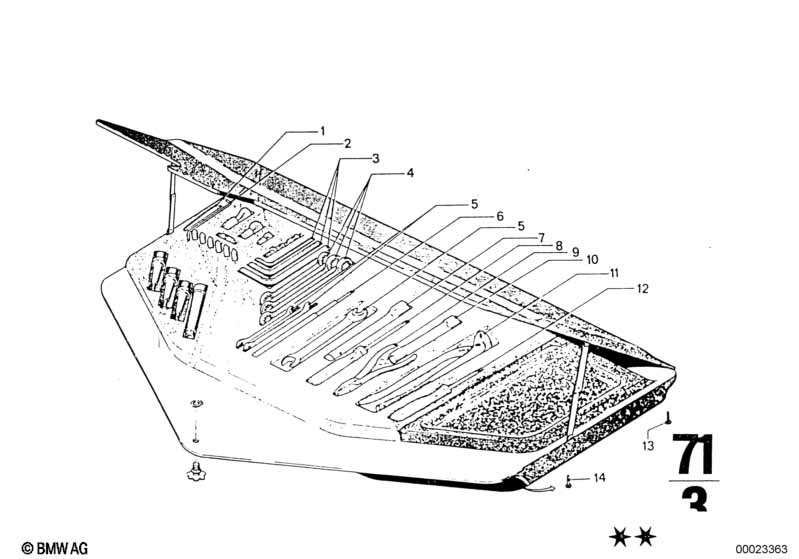

This Car tool/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feeler gage | 1 | 71111103093 | ENDED | Shop at ECS Tuning | |||||
| 02 | Pin | 1 | 71111103094 | $5.14 | Shop at ECS Tuning | |||||
| 03 | Inner hex spanner | 6 | 1 | 07119906026 | ENDED | Shop at ECS Tuning | ||||
| 03 | Inner hex spanner | 8 | 1 | 07119906032 | ENDED | Shop at ECS Tuning | ||||
| 03 | Inner hex spanner | 10 | 1 | 07119906036 | ENDED | Shop at ECS Tuning | ||||
| 04 | Ring spanner | 8-10 | 1 | 71111103081 | $13.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Ring spanner | 12-13 | 1 | 71111103082 | $13.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Ring spanner | 17-19 | 1 | 71111103099 | $12.82 | ENDED | Shop at ECS Tuning | |||
| 05 | Open end spanner | 10-11 | 1 | 71111103078 | $13.52 | ENDED | Shop at ECS Tuning | |||
| 05 | Open end spanner | 12-13 | 1 | 71111103079 | $13.52 | Shop at ECS Tuning | ||||
| 05 | Open end spanner | 17-19 | 1 | 71111103080 | $13.52 | Shop at ECS Tuning | ||||
| 06 | Pin | 1 | 71111103085 | $17.51 | Shop at ECS Tuning | |||||
| 07 | Spark plug wrench | SW21 | 1 | 71111179745 | $18.50 | Shop at ECS Tuning | ||||
| 08 | Screwdriver | 1 | 71111103190 | $15.47 | Shop at ECS Tuning | |||||
| 09 | Combination pliers | 1 | 71111103092 | $25.24 | ENDED | Shop at ECS Tuning | ||||
| 11 | Water pump pliers | 1 | 71111103091 | $27.46 | Shop at ECS Tuning | |||||
| 12 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 13 | Fillister head self-tapping screw | ST4,2X19 | 4 | 07119904431 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Fillister head self-tapping screw | ST4,2X16-Z2 | 7 | 07119907948 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
