Car tool/Lifting jack for BMW 2500-3.3Li 2500 (1971)

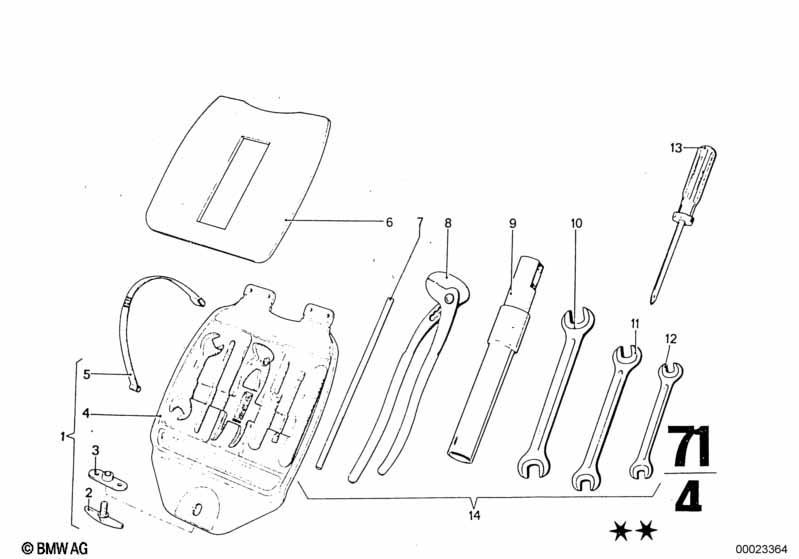

This Car tool/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | 1 | 71111111433 | ENDED | Shop at ECS Tuning | |||||
| 01 | Tool box | 1 | 71111112444 | $30.92 | ENDED | Shop at ECS Tuning | ||||
| 02 | Screw plug | 1 | 71111117440 | $2.17 | Shop at ECS Tuning | |||||
| 03 | Threaded plug | 1 | 71111110445 | $1.99 | ENDED | Shop at ECS Tuning | ||||
| 04 | Tool box | 1 | 71111112685 | ENDED | Shop at ECS Tuning | |||||
| 05 | Holding strap | 1 | 71111113791 | ENDED | Shop at ECS Tuning | |||||
| 06 | Sound absorber | 1 | 71111113973 | $9.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Pin | 1 | 71111093774 | $4.44 | Shop at ECS Tuning | |||||
| 08 | Water pump pliers | 1 | 71111179522 | $23.94 | Shop at ECS Tuning | |||||
| 10 | Open end spanner | 17-19 | 1 | 71119690008 | $3.74 | ENDED | Shop at ECS Tuning | |||
| 11 | Open end spanner | 13-14 | 1 | 71119690009 | $5.78 | Shop at ECS Tuning | ||||
| 12 | Double open-end wrench | 8X10 | 1 | 71111112893 | $5.40 | Shop at ECS Tuning | ||||
| 13 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 14 | Tool bag w.tools | 1 | 71111128360 | $44.92 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
